- Size: 6
- Place of Origin: China
- Brand Name: CRYSTAL
- Model Number: CK6136A
- Weight: 1700.000 kg

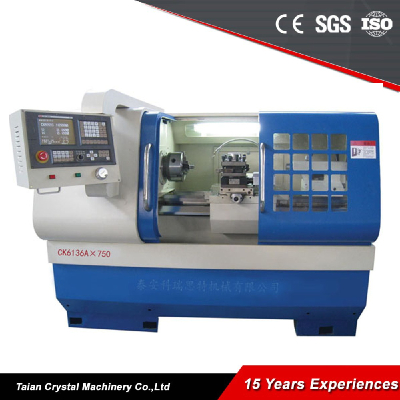

CNC Lathe Economic configuration:
1. Single spindle
2. Frequency conversion stepless speed regulation
3. CNC system: GSK928TD-L, Servo motor for XZ, Servo driven
4. 4 station electric tool post/ turret
5. Manual 3-jaw chuck,manual tailstock
6. Automatic electronic pump lubrication, Lighting system, Cooling system
7. Double triangle guide way
CNC LATHE Optional configuration:
GSK, Siemens, Fanuc and KND cnc controller
Hydraulic chuck or pneumatic chuck
Automatic Bar feeding
6/8-station turret
4-jaw chuck
Automatic chip conveyor
Semi-closed protection
- Size: 6
- Place of Origin: China
- Brand Name: CRYSTAL
- Model Number: CK6136A
- Weight: 1700.000 kg
CNC Lathe machineSpecifications
ITEMS | CK6136A-1 |
Max. swim over bed | Φ400mm |
Max. swim over carriage | Φ230mm |
Max. length of work piece | 700/1000mm |
Width of the machine | 330mm |
Size of three-jaw chuck | 200mm |
Range of spindle speed | 150-2500rpm |
Spindle bore | Φ60mm |
Taper of spindle bore | MT4 |
Stations of tool carrier | 4/6/8 station tool turret / 6/8 |
Max size of tool post | 20mm or 25mm |
Min. setting unit of motor | (Z) long 0.001mm,(X) cross 0.001mm |
Moving speed of post | (Z) long 8m/min,(X) cross 4m/min |
Taper of tailstock quill | MT4 |
Max. range of tailstock quill | 120mm |
Motor power | 4KW |
Packing size(length ×width × height) | 1865 mm×1400 mm×1650mm |
Net weight | 1500/1600kg |
