- Size: 4
- Place of Origin: China
- Brand Name: CRYSTAL
- Model Number: CK0640
- Weight: 850.000 kg

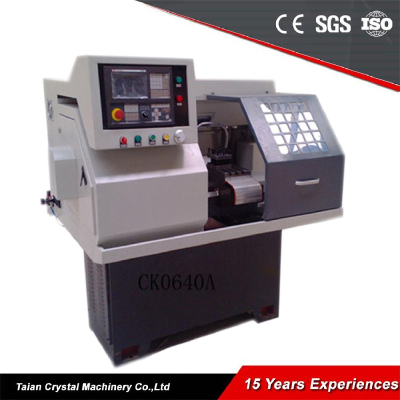

CK0640A Mini CNC Lathe
Standard Configuration
1. GSK-928TDL
2. Pneumatic Collet Chuck
3. Gang-type Tool Carrier
4. No Tail-stock, but can be customized
Features of Lathe Machine
CK0640A CNC lathe used mechanical and electrical integration
design, have beautiful shape, reasonable structure, convenient operation,
wide applications, convenient operation, a machine can realize until advantage,
multiple products a circular/end face/hole/cutting/any cone/sphere and various
metric system of automatic thread cutting, with perfect S/T/M function, can give
and receive multiple signal, automatic control processing program.
The base of the machine is wide enough, and the structure of the lead rail is reasonable, and the headstock was designed with radiator, which can improve the stability of the machine and the spindle effectively.
Both the back and forth bearings of the spindle are the accurate angular contact bearings, which can load and have the best stability.
The lead rail is made from cast iron and treated by the super audio quenching, to ensure the stability, accuracy and service life.
The X-axis is designed of 4 points a line and the Z-axis is designed of 3 points a line to ensure the stability and not affected by the side force.
The Z-axis rail is designed closely, to protect the rail when it is operated.
- Size: 4
- Place of Origin: China
- Brand Name: CRYSTAL
- Model Number: CK0640
- Weight: 850.000 kg
Specification of CNC Lathe CK0640A
Items | Specifications |
Spindle bore | φ35/49mm |
Max. swing over bed | Φ300mm |
Max. swing over carriage | φ130mm |
Z-axis max length of work piece | 250mm |
X- axis max motion traveling schedule | 550mm |
X-axis fast moving speed | 6000mm/min |
Z- axis fast moving speed | 8000 mm/min |
X-axis feed rates | 1~2000mm/min |
Z- axis feed rates | 1~1800mm/min |
Range of spindle speed | 50~2500rpm |
Thread machining scope (metric system) | 0.25~12mm |
Thread machining scope (British system) | 28~3 1/2 |
Stations of tool carrier | gang-type tool carrier |
Power of the main drive motor | 3/4KW |
Overall dimensions(L×W×H) | 1350*920*1450mm |
Net weight | 850 kg |
