- Size: 5
- Place of Origin: China
- Brand Name: CRYSTAL
- Model Number: CK6132A
- Weight: 1200.000 kg

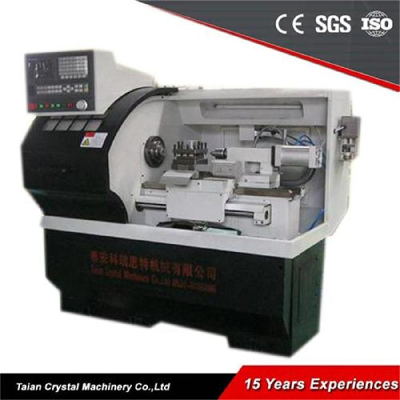

CK6132A Small CNC Lathe Machine
Standard Configuration and Specification
1. GSK-928TDL
2. Manual Three-jaw Chuck
3. Manual Tail-stock
4. 4-station Electric Turret
5. Automatic Lubrication System; Cooling system; Lighten system;
Main features
1. Spindle brake way by electric brake.
2. May fix with hydraulic chuck system.
3. Integrated automatic lubrication system.
4. High precision CNC lathe with good performance-price radio.
5. Electronic hand wheel equipped easy operation.
6. Hardened and ground bed guide way coated with Turcite-B.
7. The carriage adopts plastic paste processing wear small, high precision, long life.
8. Feed of X Z shaft is driven by ball screw with servo-motor or stepper motor.
9. Rotary various work piece surface automatically turning, precision machining.
Standard scheme
Fully enclosed protection;Cooling system;Lighten system;3-jaw chuck
Automatic lubrication system;4-station electric turret
Optional scheme
Hydraulic chuck; Automatic feeding; 6/8-station turret
4-jaw chuck; Automatic chip conveyor; Semi-closed protection
- Size: 5
- Place of Origin: China
- Brand Name: CRYSTAL
- Model Number: CK6132A
- Weight: 1200.000 kg
ITEMS | Specifications |
Max. swim over bed | Φ360mm |
Max. swim over carriage | Φ150mm |
Max. length of work piece | 450mm |
Range of spindle speed | 100-2500rpm |
Spindle bore | Φ40mm |
Taper of spindle bore | MT5 |
Stations of tool carrier | 4/6/or gang-type tool carrier |
Min. setting unit of motor | (Z) long 0.001mm,(X) cross0.001mm |
Moving speed of post | (Z) long 8 m/min,(X) cross 4m/min |
Taper of tailstock quill | MT3 |
Max. range of tailstock quill | 100mm |
Motor power | 4KW |
Packing size(length × width × height) | 1820 mm×1100 mm×1550mm |
Net weight | 1200/1000kg |
