- Size: 6.5
- Place of Origin: China
- Brand Name: CRYSTAL

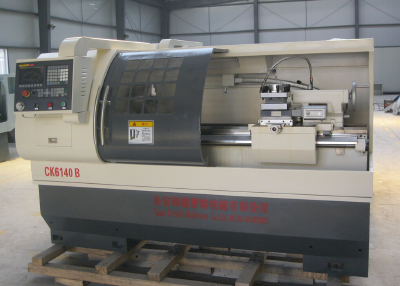

- Model Number: CK6140B
- Weight: 1900.000 kg
Basic configuration:
1. CNC system: GSK980Tb2
2. Manual 3-jaw chuck, manual tailstock
3. 4-position electrical tool carrier
4. Automatic electronic pump lubrication
7. Fully enclosed protection
8. Cooling system
9. Lighten system
Optional configuration:
GSK Siemens Fanuc CNC controller
Hydraulic chuck or Pneumatic chuck
6/8-station turret
4-jaw chuck
Automatic chip conveyor
Semi-closed protection
Automatic feeding
Others, according to your request
- Size: 6.5
- Place of Origin: China
- Brand Name: CRYSTAL
- Model Number: CK6140B
- Weight: 1900.000 kg
Specification
ITEMS | Specifications |
Max.swim over bed | Φ400mm |
Max.swim over carriage | Φ245mm |
Max.length of work piece | 750 /1000mm |
Wedth of the bed | 330mm |
Range of spindle speed | 150~500 320~1600rpm |
Spindle bore | Φ52mm |
Taper of spindle bore | MT4 |
Size of three-jaw chuck | Φ250mm |
Stations of tool carrier | 4/6/8/ or gang-type tool carrier |
Min.setting unit of motor | (Z) long 0.001mm,(X) cross0.001mm |
Moving speed of post | (Z) long 8 m/min,(X) cross 4m/min |
Taper of taikstock quill | MT4 |
Max.range of tailstock quill | 120mm |
Motor power | 5.5KW |
Packing size(lenght×width×height) | 2150/2400 mm×1450 mm×1650mm |
Net weight | 1700/1900kg |
