- Size: 6
- Place of Origin: China mainland
- Brand Name: CRYSTAL
- Model Number: CK6136
- Weight: 1700.000 kg

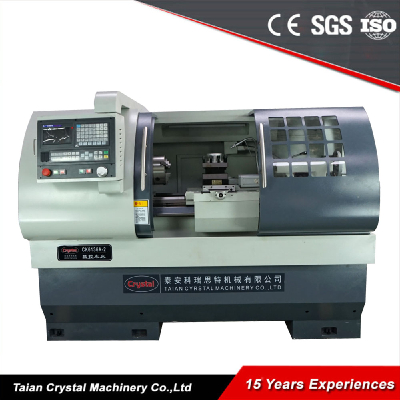

CNC LATHE Optional configuration :
GSK, Siemens, Fanuc and KND cnc controller
Hydraulic chuck or pneumatic chuck
Automatic Bar feeding
6/8-station turret
4-jaw chuck
Automatic chip conveyor
Semi-closed protection
- Size: 6
- Place of Origin: China mainland
- Brand Name: CRYSTAL
- Model Number: CK6136
- Weight: 1700.000 kg
CNC Lathe specification :
Items | Specifications |
| cnc lathe | CK6136A-2 |
Max. swim over bed | Φ400mm |
Max.swim over cross slide | Φ230mm |
Max.length of work piece | 750mm, can be longer |
Wedth of the Guide | 330mm |
Size of chuck | 200mm |
Range of spindle speed | 150-3000rpm |
Spindle bore | Φ60mm |
Taper of spindle bore | MT6 |
stations of tool carrier | 4-position electrical turret, or 6/8 position tools |
Max.size of tool post | 20×20mm or 25×25mm |
Min.setting unit of motor | (Z) Long 0.001mm (X) Cross 0.001mm |
Moving speed of post | (Z) Long 8 m/min (X) Cross 6 m/min |
Taper of tailstock quill | MT4 |
Max. range of tailstock quill | 120mm |
Motor power | 5.5KW |
Packing size (mm) | 1980×1400 ×1650mm |
Net weight | 1650/1700kg |
