- Size: 4
- Place of Origin: China
- Brand Name: CRYSTAL
- Model Number: CK6136
- Weight: 1700.000 kg

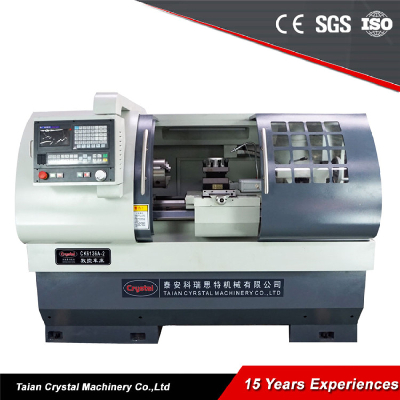

Main features:
1. The base is made from cast iron, which the body is heavy enough so it is of good rigidity and stability.
2. Independent spindle, stepless speed regulation, with lower noise and high- standard machining accuracy, is an environmental- protective machine.
3. The spindle is the highrotate speed and sophisticated bearing, with smooth surface. The extra size diameter of the spindle bore is φ60mm while the diameter of chuck is φ200mm.
4. High cost performance, you can have the configuration of CK6140 but pay the price of CK6136.
Standard configuration
1. System:GSK-928TDL,
2. 3 jaw manual chuck
3. 4 station tool
4. Manual tailstock
5. Lighting system
6. Cooling system
7. Automatic lubrication system
Guaratee and after-sale services
1. One year guarantee for whole machine
2. 24-hours technical support by E-mail or telephone
3. Provide extra accessories for the machine
4. Also provide service of make program according to your drawings
5. Customized or special design is OK
- Size: 4
- Place of Origin: China
- Brand Name: CRYSTAL
- Model Number: CK6136
- Weight: 1700.000 kg
Specifications
ITEMS | Specifications |
Max. swim over bed | Φ360mm |
Max. swim over carriage | Φ190mm |
Max. length of work piece | 750mm |
Width of the machine | 330mm |
Size of three-jaw chuck | 200mm |
Range of spindle speed | 150-2500rpm |
Spindle bore | Φ60mm |
Taper of spindle bore | MT4 |
Stations of tool carrier | 4 |
X/Z axis torque | 4/6N.M |
X/Z axis fast feeding speed | 6/8 M/MIN |
Taper of tailstock quill | MT4 |
Max. range of tailstock quill | 120mm |
Motor power | 5.5KW |
Packing size(length ×width × height) | 1950 mm×1400 mm×1650mm |
Weight | 1700kg |
Peculiar setup
Optional brands of CNC systems | SIEMENS,FANUC |
Optional types of the tool post | horizontal 6-station, horizontal 8-station |
Optional types of the workpiece clamping | hydraulic chuck,pneumatic chuck,spring chuck |
Optional types of the tailstock | Hydraulic tailstock,pneumatic tailstock |
Optional patterns of feeding | Automatic Bar feeding(Customized programs alone) |
