- Size: 6 CBM
- Place of Origin: China
- Brand Name: CRYSTAL

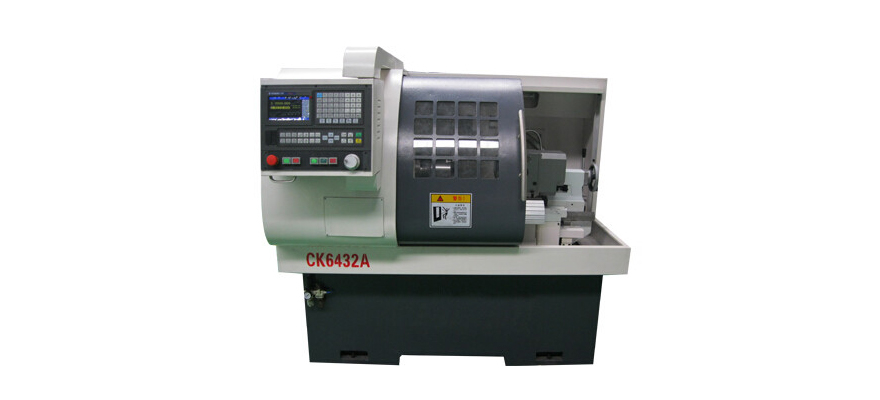

- Model Number: CK6432A
- Weight: 1250.000 kg
Standard configuration
System:GSK928TD-L,
3 jaw manual chuck
4 station tool
Manual tailstock
Lighting system
Cooling system
Automatic lubrication system
Why choose us ?
1. Choose of accessories: All of accessories of our CNC machine are from famous factory. Important parts are imported.
2. Advanced design: Professional R&D Team optimize and improve the design of our machine.
3. Multi CNC system brand: GSK, SIMENSE, FANUC,SYNTEC can be supplied as your request.
4. Global strategy: our machines have been exported more than 40 countries and win customer’s high praise.
Guarantee and after-sale services
1. One year guarantee for whole machine
2. 24-hours technical support by E-mail or telephone
3. Provide extra accessories for the machine
4. Also provide service of make program according to your drawings
5. Customized or special design is OK
- Size: 6 CBM
- Place of Origin: China
- Brand Name: CRYSTAL
- Model Number: CK6432A
- Weight: 1250.000 kg
Specification of CK6432A
Specifications | |
Max. swing over bed | Φ360mm |
Max. swing over carriage | Φ150mm |
Max. length of work piece | 450mm |
Range of spindle speed | 150-2500rpm |
Spindle bore | Φ60mm |
Taper of spindle bore | MT6 |
Chuck size | 200mm |
Stations of tool carrier | 4 |
Max size of tool post | 20mm×20mm |
X/Z axis torque | 4/4N.M |
X/Z axis fast feeding speed | 8/10 m/min |
Taper of tailstock quill | MT4 |
Max. range of tailstock quill | 100mm |
Motor power | 4KW |
Packing size(length ×width ×height) | 1600*100*550mm |
Net weight | 1300kg |
Optional Configuration
Optional brands of CNC systems | SIEMENS、FANUC |
Optional types of the tool post | horizontal Six-station, horizontal eight-station |
Optional types of the work piece clamping | hydraulic chuck、pneumatic chuck、spring chuck |
Optional types of the tail-stock | Hydraulic tail-stock、pneumatic tail-stock |
Optional patterns of feeding | Automatic feeding(Customized programs alone) |
