- Guaranteed Secure Payments on Every Order
- Refund if your item is not delivered or as described
- Buyer Protection after order confirmation
- Size: 8
- Place of Origin: China
- Brand Name: CRYSTAL
- Model Number: AWR2840
- Weight: 2200.000 kg

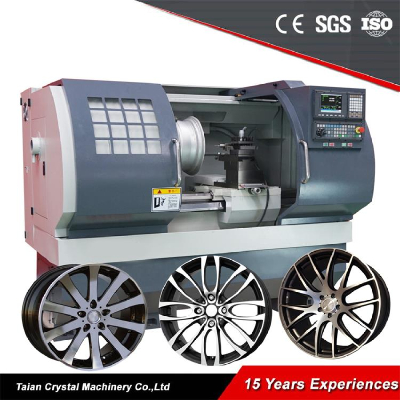

CNC Alloy Wheel Repair Lathe Machine AWR2840
Specification:
Supply repairing Alloy wheel up to Max 27’
Automated self plotting Digitization by Probe System
Easy Operate
CE Certification
Free Training video
7x24 hours email or telephone technology supply
Standard Configuration:
SYNTEC CNC control system
Touch Probe system
3-Jaws Chuck(With Special Soft Jaws)
Diamond Cutter 1 set
Automatic electronic pump lubrication
Manual Quick Change Toolpost, Four-station;
Full Enclose(Security Guard Door)
Specific Digital Optimization Software
Training Video CD
- Size: 8
- Place of Origin: China
- Brand Name: CRYSTAL
- Model Number: AWR2840
- Weight: 2200.000 kg
ITEMS | Specifications |
Max. swim over bed | Φ720 |
Max. swim over carriage | Φ540 |
Max. Size of alloy wheel | 27’ |
Cross slide travel (mm) | 350mm |
Width of the machine | 330mm |
Length of the rail | 1320mm |
Size of three-jaw chuck | 12’ |
Range of spindle speed | 50-2000rpm |
Spindle speed control | Automatic |
Spindle bore | Φ60mm |
Taper of spindle bore | MT6 |
Taper of spindle nose | A2-6 |
Stations of tool carrier | 4 Station |
Max. size of tool post | 25×25mm |
Min. setting unit of motor | (Z) long 0.001mm, (X) cross 0.001mm |
Moving speed of post | (Z) long 8 m/min, (X) cross 4 m/min |
Machine base | Whole cast iron base |
Motor power | 7.5KW |
Packing size(length ×width ×height) | 2300×1750×1950 |
Net weight | 2600kg |
