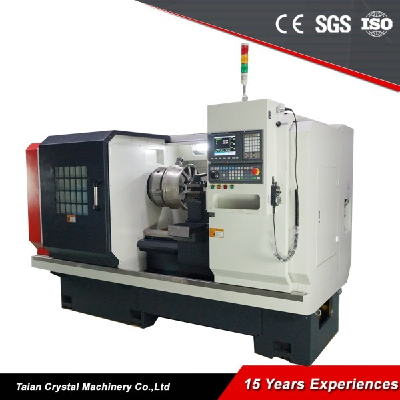

Car Alloy Wheel Repair CNC Lathe Machine AWR32H
Product Description
Specification:
lSupply repairing Alloy wheel up to Max 32’
lAutomated self plotting Digitization by Probe System
lEasy Operate
lCE Certification
lFree Training video
Standard Configuration:
lSYNTEC CNC control system
lPioneer Sensing Probe
l3-Jaws Chuck(With Special Soft Jaws)
lDiamond Cutter 1 set
lAutomatic electronic pump lubrication
lSpecific Digital Optimization Software
lManual Quick Change Toolpost,Four-station
- Size: 14
- Place of Origin: China
- Brand Name: CRYSTAL
- Model Number: AWR32H
- Weight: 3200.000 kg
ITEMS | Specifications |
Max. swing over bed | Φ880(34’) |
Max. Size of alloy wheel | Φ820(32’) |
Adjustable stroke of carrier in X direction | 100mm |
Cross slide travel (mm) | 450 |
Width of the machine | 400 |
Length of the rail | 1650 |
Size of three-jaw chuck | 16’ |
Range of spindle speed | 50~1800 |
Spindle speed control | Automatic |
Spindle bore | Φ82 |
Taper of spindle bore | 1:20(Φ90) |
Stations of tool carrier | 4 Station |
Max. size of tool post | 25×25mm |
Min. setting unit of motor | (Z) long 0.001mm, (X) cross 0.001mm |
Moving speed of post | (Z) long 8 m/min, (X) cross 6 m/min |
Machine base (cast iron base) | Separate |
Motor power | 7.5KW |
Machine size | 2970×1660×2080 |
Packing size(length ×width ×height) | 3120×1810×2350 |
Net weight | 3200kgs |
