- Size: 8.2CBM
- Place of Origin: China
- Brand Name: CRYSTAL
- Model Number: AWR32H
- Weight: 2200.000 kg

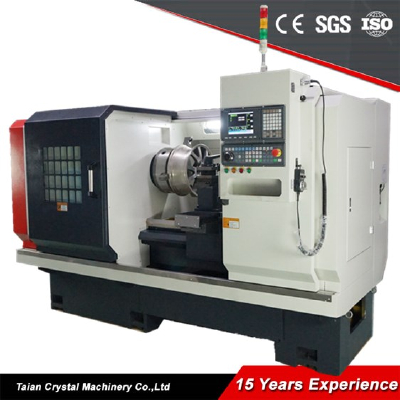

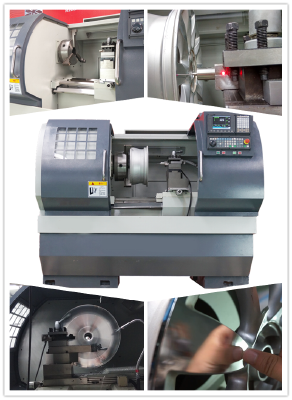

Alloy rim repair machine:
1. Repair 5-30 inch alloy wheel
2. SYNTEC CNC control system
3. Detection Touch Probe ( Pioneer Sensing Probe)
4. Frequency conversion stepless speed
5. Manual customized long jaw chuck
6. 4 position tools
7. Automatic electronic pump lubrication, Coolant system, Lighting system
8. Full Enclose(Security Guard Door);
9. Specific Digital Optimization Software;
English version manual instruction & Training Video CD;
10. CE, SGS-certificate, One-year warranty
- Size: 8.2CBM
- Place of Origin: China
- Brand Name: CRYSTAL
- Model Number: AWR32H
- Weight: 2200.000 kg
Alloy rim repair machine specification:
ITEMS | AWR32H |
Max. swig over bed (mm)(inch) | Φ880(34’) |
Max. Size of alloy wheel (inch) | Φ820(32’) |
Adjustable stroke of carrier in X direction | 100mm |
Cross slide travel (mm) | 450 |
Width of the rail (mm) | 400 |
Length of the rail (mm) | 1650 |
Size of the three-jaw chuck (inch) | 16’ |
Range of spindle speed (RPM) | 50~1800 |
Spindle speed control | Automatic |
Spindle bore (mm) | Φ82 |
Taper of spindle bore | 1:20(Φ90) |
Max. size of tool post | 25×25mm |
Stations of tool carrier | 4 position |
Min. setting unit of motor | (Z) long 0.001mm, (X) cross 0.001mm |
Moving speed of post | (Z) long 8m/min, (X) cross 6m/min |
Motor power | 7.5KW |
Mchine base(cast iron base) | Separate |
Machine size (L×W×H) (mm³) | 2970×1660×2080 |
Package size | 3120×1810×2350 |
Net weight | 3200kgs |
