- Size: 8.2CBM
- Place of Origin: China
- Brand Name: CRYSTAL
- Model Number: AWR2840
- Weight: 2200.000 kg

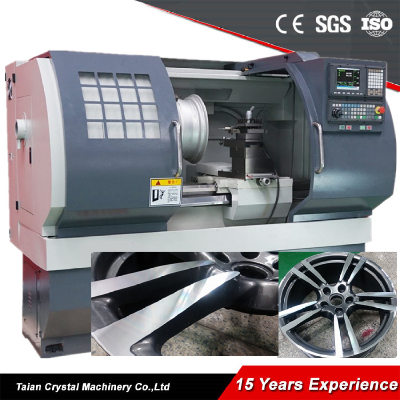

Alloy rim repair machine:
1. Repair 5-30 inch alloy wheel
2. SYNTEC CNC control system
3. Detection Touch Probe ( Pioneer Sensing Probe)
4. Frequency conversion stepless speed
5. Manual customized long jaw chuck
6. 4 position tools
7. Automatic electronic pump lubrication, Coolant system, Lighting system
8. Full Enclose(Security Guard Door);
9. Specific Digital Optimization Software;
English version manual instruction & Training Video CD;
10. CE, SGS-certificate, One-year warranty
- Size: 8.2CBM
- Place of Origin: China
- Brand Name: CRYSTAL
- Model Number: AWR2840
- Weight: 2200.000 kg
Rim repair machine specifications:
Main Technical parameters | AWR2840 |
Max. swig over bed | Φ720mm or bigger |
Max. swig over cross slide | Φ570mm |
X/Z axis Travel/Stroke | 350mm/750mm |
Length of the guide rail | 1320mm |
Width of the guide rail | 330mm |
Size of the three-jaw chuck | 12inch (320mm) |
Range of spindle speed | 50-2000rpm |
Spindle bore | Φ60mm |
Taper of spindle bore | MT6 |
Max. size of tool post | 25×25mm |
Tool holder | 4 position |
Min. setting unit of motor | (Z) long 0.001mm,(X) cross 0.001mm |
Moving speed of post | (Z) long 8m/min,(X) cross 4m/min |
Motor power | 7.5KW |
Packing size(length×width×height) | 2390 mm×1750mm×2150mm |
Net weight | 2650kgs |
