- Size: 9
- Place of Origin: China
- Brand Name: CRYSTAL
- Model Number: VMC7032
- Weight: 1900.000 kg

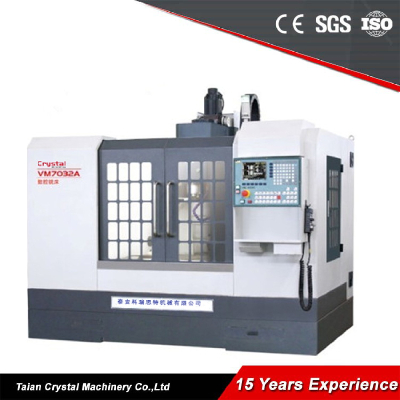

VMC7032 CNC Vertical Machining Center
Standard configuration
KND system ( you also can choose Siemens and FANUC control)
Umbrella type tool Magazine, 12 tools
Taiwan BT40 spindle unit
High precision ball screw
Fully-guarded type machine
self-lubrication, coolant system, lighting system
- Size: 9
- Place of Origin: China
- Brand Name: CRYSTAL
- Model Number: VMC7032
- Weight: 1900.000 kg
Items | Details | Unit | VMC7132 |
Table | Size | mm | 800×320 (1000×320) |
Travel of 3 axis | mm | 610/320/400 | |
Max, table load | kg | 400 | |
T-slot | Size | mm | 3-14 |
Center distance | mm | 100 | |
Spindle | Spindle taper | BT40 | |
Spindle to guide | mm | 376 | |
Distance of spindle head to table | mm | 130-530 | |
Max speed | rpm | 8000 | |
Motor power | KW | 3.7/5.5 | |
Spindle drive | Belt transmission | ||
Accuracy | Positioning accuracy | mm | 0.02 |
Repeatability | mm | 0.01 | |
Axis motor | Power of X/Y/Z | Kw | 1.2/1.6/1.6 |
Feeding speed | Rapid feed of X/Y/Z | mm/min | 1000 |
Cutting feed of X/Y/Z | mm/min | 6000 | |
Parameters | Air pressure | Kgf/cm² | 6 |
Weight | Kg | 1900 | |
Dimension | mm | 2280*1760*2200 | |
Power | 3 phase 380V, |
