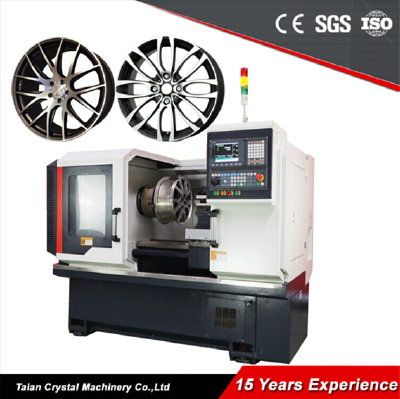

28 Inch Car Alloy Rim Repair CNC Lathe Alloy Wheel Repair Machine

28 Inch Car Alloy Rim Repair CNC Lathe Alloy Wheel Repair Machine

  • Min.Order Quantity: 35 Sets
  • Supply Ability: 50 Sets per Month
  • Port: Qingdao
  • Payment Terms: T/T,Western Union
Get Latest Price:
  • *Quantity: Set/Sets
| Factory
Experience:2000-10-26
Buyer Protection

- Guaranteed Secure Payments on Every Order

- Refund if your item is not delivered or as described

- Buyer Protection after order confirmation

Latest Browsing
Product Details
  • Place of Origin:  China
  • Brand Name:  CRYSTAL
  • Model Number:  AWR28H

ITEMS

AWR28H

Max. swig over bed (mm)(inch)

Φ770 (30)

Max. Size of alloy wheel (inch)

Φ720 (28)

Adjustable stroke of carrier in X direction

100mm

Cross slide travel (mm)

390

Width of the rail (mm)

300

Length of the rail (mm)

1300

Size of the three-jaw chuck (inch)

12

Range of spindle speed (RPM)

50~2000

Spindle speed control

Automatic

Spindle bore  (mm)

Φ82

Taper of spindle bore

1:20(Φ90)

Max. size of tool post

25×25mm

Stations of tool carrier

4 position

Min. setting unit of motor

(Z) long    0.001mm,

(X) cross   0.001mm

Moving speed of post

(Z) long     8m/min,

(X) cross    6m/min

Motor power

7.5KW

Mchine base(cast iron base)

Whole

Machine size

(L×W×H) (mm³)

2140 ×1600×1860

Package size

2300×1750×2100

Net weight

2600kgs

Mark

Stock





  • Place of Origin:  China
  • Brand Name:  CRYSTAL
  • Model Number:  AWR28H
